Does the NSP3CT ONE support automatic software updates?

Yes. The NSP3CT ONE supports OTA updates, also known as over-the-air updates, via WiFi. This keeps the system current at all times without requiring a service visit.

In how many languages is the NSP3CT ONE App available?

The NSP3CT ONE App is available in 36 languages as a separate Android app. This makes it ideal for international inspection teams or use in multilingual markets.

ONE SYSTEM.
FOUR VARIATIONS.
ZERO COMPROMISES.

Q: What pipe diameters is the NSP3CT ONE suitable for?

The NSP3CT ONE is designed for pipes from DN15, making it the industry's smallest Full-HD camera. With four variants – camera diameters C10 and C18 with 30 m cable lengths each – a single system covers virtually every micro-pipe application.

Q: Do I need a separate display device or additional battery?

No. The NSP3CT ONE is a true all-in-one system: a 10.1-inch Full-HD touchscreen, 4-hour battery and storage are all integrated. No external monitor or additional battery is required.

Q: Can the NSP3CT ONE be operated outdoors and with gloves?

Yes. The housing of the NSP3CT ONE is designed for construction site conditions. Hard buttons allow safe operation even with work gloves. The system can be used both upright and lying down.

Q: How is the NSP3CT ONE powered – even away from mains power?

The NSP3CT ONE operates either via 230V mains or a standard powerbank. This keeps deployments possible even without a mains connection on site.

Q: How durable is the NSP3CT ONE's camera lens?

Both NSP3CT ONE camera heads, C10 and C18, feature a sapphire glass lens – one of the hardest and most scratch-resistant materials available. This is complemented by IP68 protection for full dust and water resistance.

PORTABLE ALL-IN-ONE INSPECTION SYSTEM WITH
TOUCHSCREEN AND THE INDUSTRY’S SMALLEST FULL HD-CAMERA

Small. Sharp. Always Ready.

The ONE is the most compact all-in-one inspection system in the industry – and the smallest with Full-HD image quality. Weighing under 7 kg, with a practical, removable shoulder strap, it is ready to deploy wherever pipes from DN15 need inspection – operational within seconds.

See What Matters.

With 4 variants – two camera diameters, two cable lengths – and quickly interchangeable heads, the ONE covers virtually every application in narrow pipes. The Full-HD image delivers the clarity needed for standard-compliant documentation and legally secure reporting.

Ready When You Are.

No external monitor, no additional battery – the ONE brings everything it needs. 4 hrs of battery life, 230V or powerbank operation and automatic OTA updates keep the system current at all times – so the focus always stays on the job, not on the equipment.

DEFINING STANDARDS.

NSP3CT ONE
PRODUCT: PORTABLE INSPECTION SYSTEM
NSP3CT.PRO GMBH // THERE CAN BE ONLY ONE //
141916.5.320.15145.2025.05.13

FULL HD CAMERA 1080P/25 (IP68)
10 OR 18MM CAMERA
30M PUSH/PULL OR PUSH ROD
SAPPHIRE GLAS LENS
10.1“ TOUCH DISPLAY, EXTENDED FULLHD (1920X1200P)
INTUITIVE CONTROL INTERFACE
RUGGED YET LIGHT ABS CASING (IP54)
LOCATION (512HZ, 640HZ AND 33KHZ)
METERCOUNTER
FULL VIDEO OVERLAY
32GB INTERNAL MEMORY (SD-CARD EXPANDABLE)
4 HRS. LI-ION BATTERY
ERGONOMIC TILT STAND
OTA-UPDATE FUNCTIONALITY
BACKSTRAP INCLUDED

FULL HD

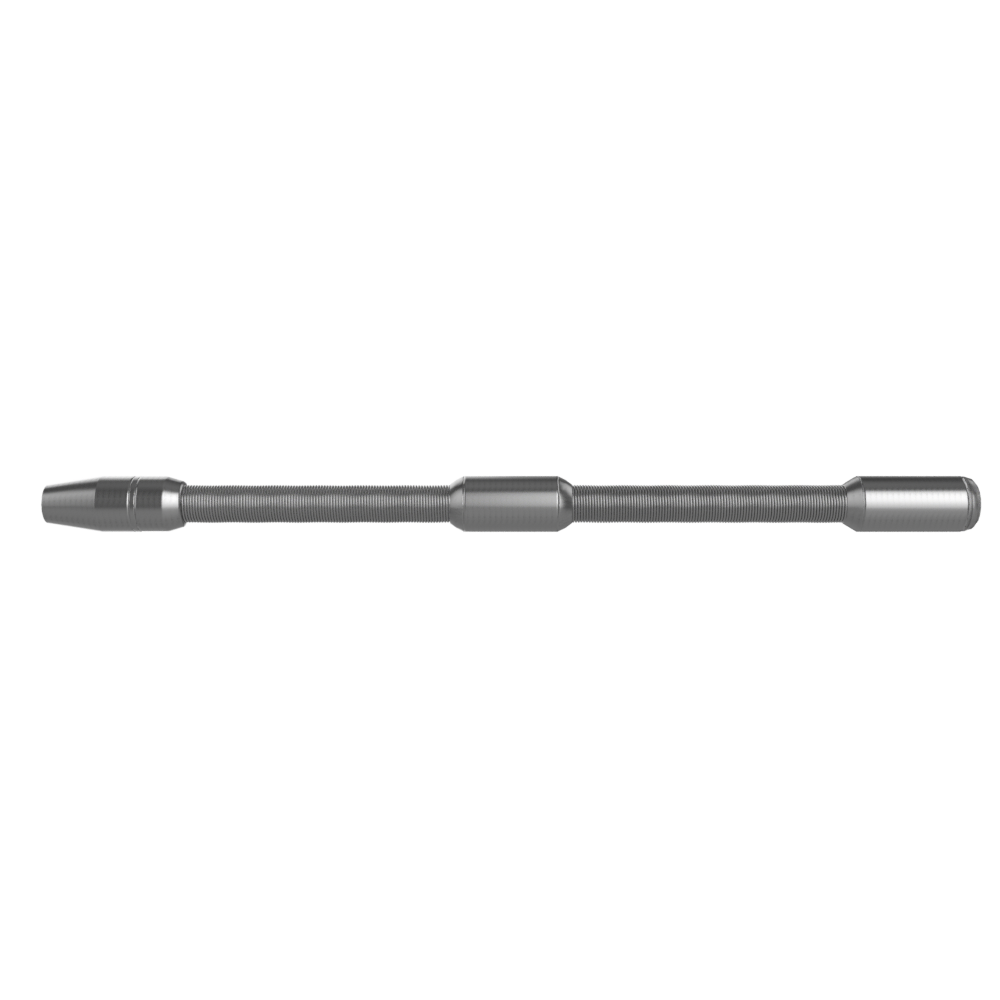

10mm FULL HD Camera

SAPPHIRE CRYSTAL LENS
105° FOV
DETECTION IN PARALLEL

FULL HD

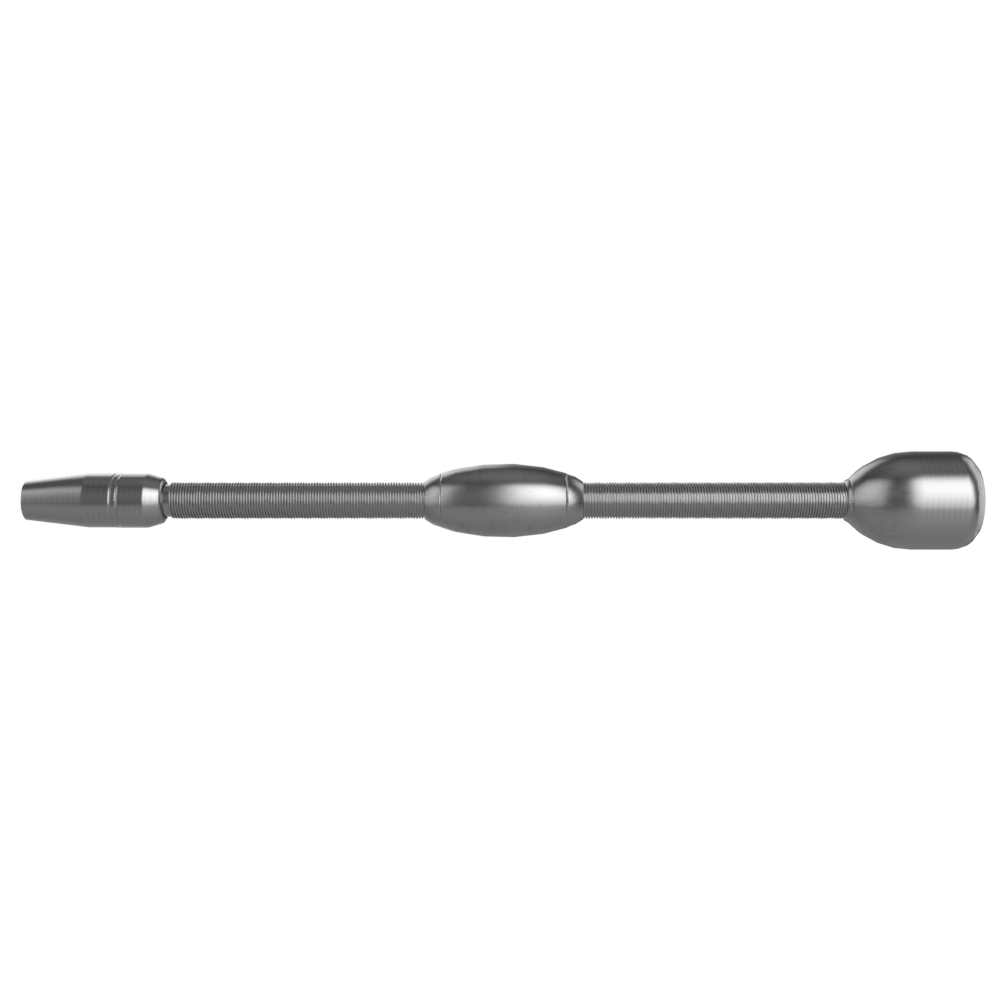

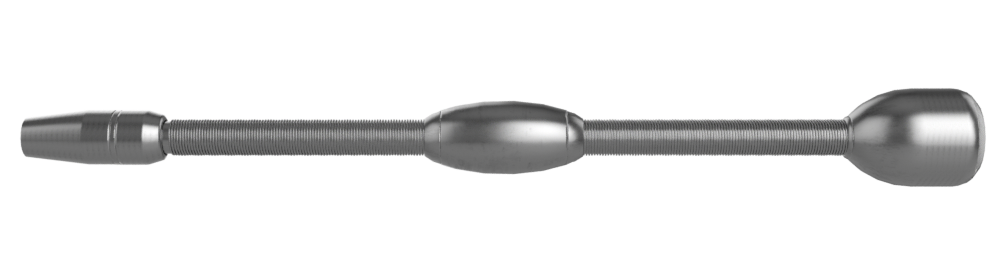

18mm FULL HD Camera

SAPPHIRE CRYSTAL LENS
105° FOV
DETECTION IN PARALLEL

EXTENDED FULL HD

10.1″ Display

Touchscreen
Extended Full HD
1920×1200 Pixel
(WUXGA/16×10)
anti-glare
sunlight readable

EASY SWAP

Push-Pull

30m ultra-flexible
Push-Pull cable
for a maximum of flexibility
25mm pipe bend mobility

EASY SWAP

Push Rod

30m flexible
Push Rod cable
for the best mix of
stiffness and flexibility

Wifi

to connect
with mobile devices

Location

512Hz, 640Hz
and 33kHz

Memory

32GB internal
add’l. SD-Card
and USB slot

4 hours

Operating time
Li-Ion battery

Lightweight

Total weight of only 6.5kg

Waterproof

Case: IP54
Cameras: IP68

Intuitive

Easy to handle
User Interface

Durable

Rugged yet
light ABS housing

Video Overlay

Date/time, timecode and distance on video

OTA-Update

Over-the-air software update functionallity

Metercounter

Integrated on-tap distance measuring

Ergonomic

Removable, padded
backstrap and
integrated tilt stand

TECH SHEET

DOWNLOAD

OPERATING MANUAL

ONLINE OPERATING MANUAL

DOWNLOAD PDF

FREQUENTLY ASKED QUESTIONS

What pipe diameters is the NSP3CT ONE suitable for?

The ONE is designed for pipes from DN15, making it the industry’s smallest Full-HD camera. With four variants (camera diameters C10/C18, 30 m cable lengths each), a single system covers virtually every micro-pipe application.

Do I need a separate display device or additional battery?

No. The ONE is a true all-in-one system: 10.1″ Full-HD touchscreen, 4-hour battery and storage are all integrated. No external monitor or additional battery is required.

Can the ONE be operated outdoors and with gloves?

Yes. The housing is designed for construction site conditions: hard buttons allow safe operation even with work gloves. The system can be used both upright and lying down.

How is the ONE powered – even away from mains power?

The ONE operates either via 230V mains or a standard powerbank. This keeps deployments possible even without a mains connection on site.

How durable is the ONE’s camera lens?

Both camera heads (C10 and C18) feature a sapphire glass lens – one of the hardest and most scratch-resistant materials available. This is complemented by IP68 protection for full dust and water resistance.

Does the ONE support automatic software updates?

Yes. The ONE supports OTA updates (over-the-air) via WiFi – keeping the system current at all times without requiring a service visit.

In how many languages is the ONE App available?

The ONE App is available in 36 languages as a separate Android app – ideal for international inspection teams or use in multilingual markets.

DO YOU HAVE ANY QUESTIONS
REGARDING THE NSP3CT ONE?

Send us a contact request and our responsible staff will contact you shorty.

COMPACT. INTUITIVE.
HIGHLY BEND FLEXIBLE.
ONE DEVICE.
FOUR VARIATIONS.

ZERO COMPROMISES.
