FULL CLARITY
IN MINIMAL SPACE.

Product Logo NSP3CT ONE

OUR SMALLEST FULL HD CAMERA HEAD FROM DN100.

Small. Sharp. Fearless.

The C50 is the smallest camera head in the C-SERIES and fits in pipes where other heads give up. With a photosensitivity of 0.001 Lux, it delivers clear Full-HD images even under extreme lighting conditions – reliably, clearly, precisely and without compromise on image quality.

Precision Down to the Last Detail.

Endless rotation, a swivel range of −135° to +135° and 4× digital zoom give the operator complete control over every angle of the pipe. The integrated two-point laser measuring determines damage dimensions and pipe diameters directly on site – without additional equipment.

Flexible. Easily Integrated.

The C50 is compatible with all C-SERIES crawlers. Its integrated pressure sensor continuously monitors the internal pressure of the camera head – if it drops, the system immediately warns of impending water ingress. IP68 provides additional reliable protection under the harshest conditions.

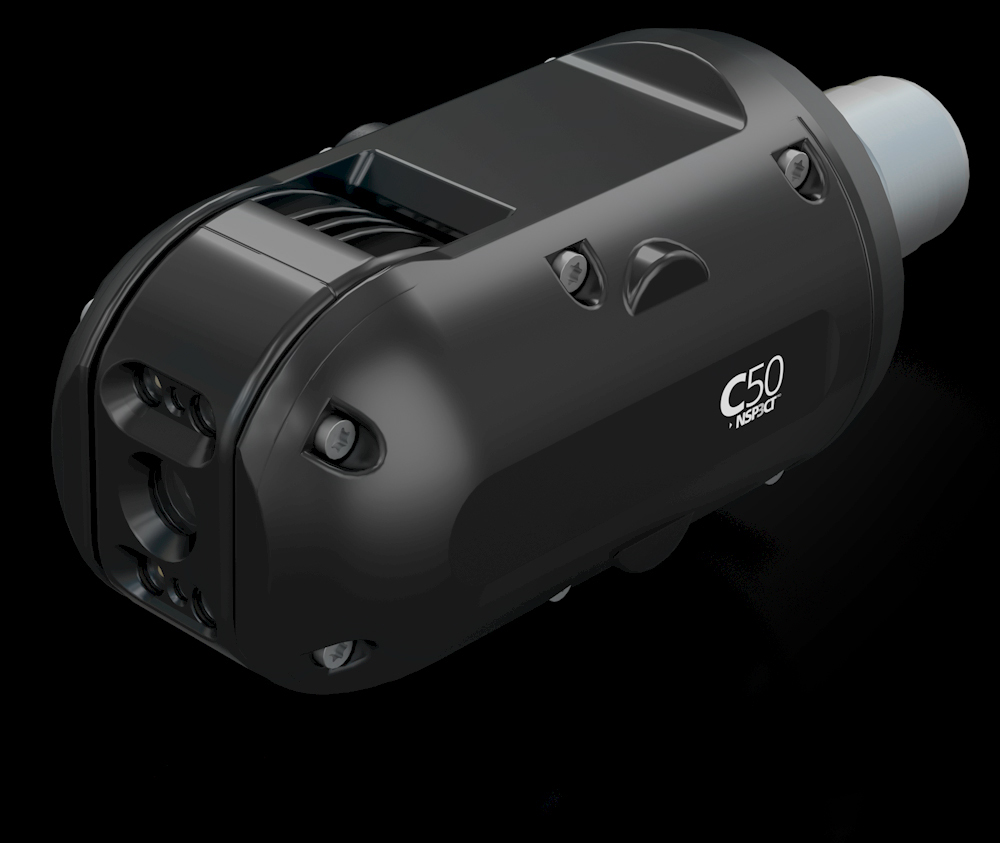

NSP3CT C50 Camera Head Front

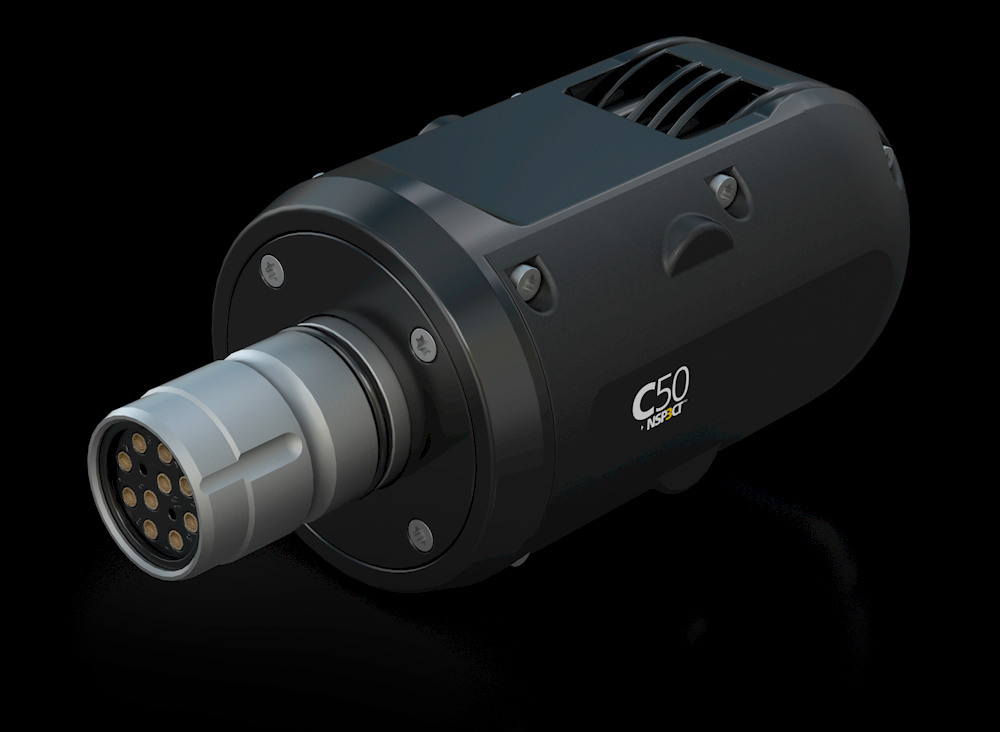

NSP3CT C50 Camera Head Back
C50 CAMERA HEAD
NSP3CT C50
PRODUCT: CAMERA HEAD FOR DN100-250 CRAWLER SYSTEM
NSP3CT.PRO GMBH // C-SERIES // C50 //
141916.5.320.3.50.2025.05.13
FULL HD 1080P
UPRIGHT IMAGE
4xDIGITAL ZOOM
BRIGHT LIGHTING
ENDLESS ROTATION
LASER MEASUREMENT
ONLINE USER MANUAL

APPLICATION

DN100 TO DN250
MAX. PRESSURE: 1 BAR
OPERATING TEMPERATURE: 0° TO 40°C
STORAGE TEMPERATURE: -20° TO 70°C
NSP3CT.PRO Logo, negative

APPLICABLE CRAWLERS

NSP3CT CRC90 with C50 Camera Head - Front/Side View

THE CRC90 CRAWLER

DN100-DN250
NSP3CT CRC130 Front/Side View (Lifter Up)

THE CRC130 CRAWLER

DN125-DN1000

FREQUENTLY ASKED QUESTIONS

What pipe diameters is the C50 camera head designed for?
The C50 is suitable for pipes from DN100 and is the smallest camera head in the C-SERIES. With dimensions of 58 × 97 mm, it fits into pipes where other heads already fail.
How good is the C50’s image quality in poor lighting conditions?
The C50 achieves a photosensitivity of 0.001 Lux (F1.8, AGC) – even in near-total darkness it delivers a clear Full-HD image without compromise on quality.
How does the C50 prevent blind spots during pipe inspection?
Through endless rotation (360°, without cable twisting) and a tilt range of −135° to +135°, the C50 captures every angle of the pipe completely – no blind spots, complete inspection.
Can I measure damage dimensions directly with the C50?
Yes. The integrated two-point laser enables measurement of damage dimensions and pipe diameters directly on site – no additional measuring device required.
How does the C50 protect its interior against water ingress?
The integrated pressure sensor continuously monitors the camera head’s internal pressure. If pressure drops, the system immediately warns. IP68 protection class additionally protects against continuous submersion.
Which crawlers is the C50 compatible with?
The C50 is compatible with CRC90 and CRC130 – as part of the modular C-SERIES, it can be flexibly deployed and integrated into a larger system as requirements grow.

DO YOU HAVE ANY QUESTIONS
REGARDING THE C50 CAMERA HEAD?

Send us a contact request and our responsible staff will contact you shortly.
