What section lengths is the NSP3CT DRC300 designed for?

The NSP3CT DRC300 is designed for section lengths up to 300 metres and is fully motorised in both directions. This makes it ideal for long stretches in urban sewer and drainage networks.

Can the NSP3CT DRC300 be operated without the HMX tablet?

Yes. The integrated touch control display of the NSP3CT DRC300 enables direct operation at the drum – without the HMX tablet and independently of a WiFi connection.

Does the NSP3CT DRC300 support external metre counter solutions?

Yes. The NSP3CT DRC300 features additional connections for external metre counter solutions. This provides full flexibility in documentation and integration into existing reporting systems.

Which crawlers is the NSP3CT DRC300 compatible with?

The NSP3CT DRC300 is compatible with the NSP3CT CRC90 and NSP3CT CRC130 crawlers and integrates seamlessly into the modular C-SERIES. Control is possible via HMX or tablet over WiFi.

LONG DISTANCE
STRONG PERFORMANCE.

Q: How fatigue-free is operating the NSP3CT DRC300 during long deployments?

The fully motorised extraction and retraction of the NSP3CT DRC300 handles all cable transport. Operators do not need to pull or guide the cable manually. This provides maximum comfort even on long stretches and multiple consecutive deployments.

300-METRE CABLE DRUM OF THE C-SERIES.
FULLY MOTORISED. HIGH-PERFORMANCE. WITH TOUCH CONTROL DISPLAY.

Fully Motorized. Precise. Tireless.

The DRC300 handles long runs up to 300 m – fully motorised in both directions. That means maximum operator comfort and minimum fatigue, even on demanding stretches. High-quality construction ensures longevity in outdoor use.

300 METRES. Full Control.

The intuitive touch control display enables direct operation at the drum, without the HMX tablet. The high-precision metre counter documents positions completely and additional connections offer maxi-mum flexibility.

Part of a Growing System.

Compatible with CRC90 and CRC130 crawlers, the DRC300 is a central element of the modular C-SERIES. Control via HMX or tablet via WiFi and protection class IP54 make it the ideal partner for long inspection runs in continuous operation.

DRC300 CABLE DRUM

NSP3CT DRC300
PRODUCT: 300 METER AUTOMATIC CABLE DRUM
NSP3CT.PRO GMBH // C-SERIES // DRC300 //
141916.5.320.4183.300.2025.05.13

MOTORIZED CABLE EX- AND RETRACTION
CABLE LENGTH 300 METER
HIGH PRECISION METER COUNTER
TOUCH CONTROL DISPLAY
IP54 (DUST- AND WATER SPLASH PROTECTION)
DIMENSIONS: 747MM X 350MM X 535 MM
WEIGHT: APPROX. 70 KG INCLUDING CABLE
VOLTAGE: 110-240V AC
50 HZ MAINS FREQUENCY
FUSE PROVIDED
OPERATING TEMPERATURE: 0°C to 40°C
STORAGE TEMPERATURE: -20°C to 60°C
ONLINE USER MANUAL

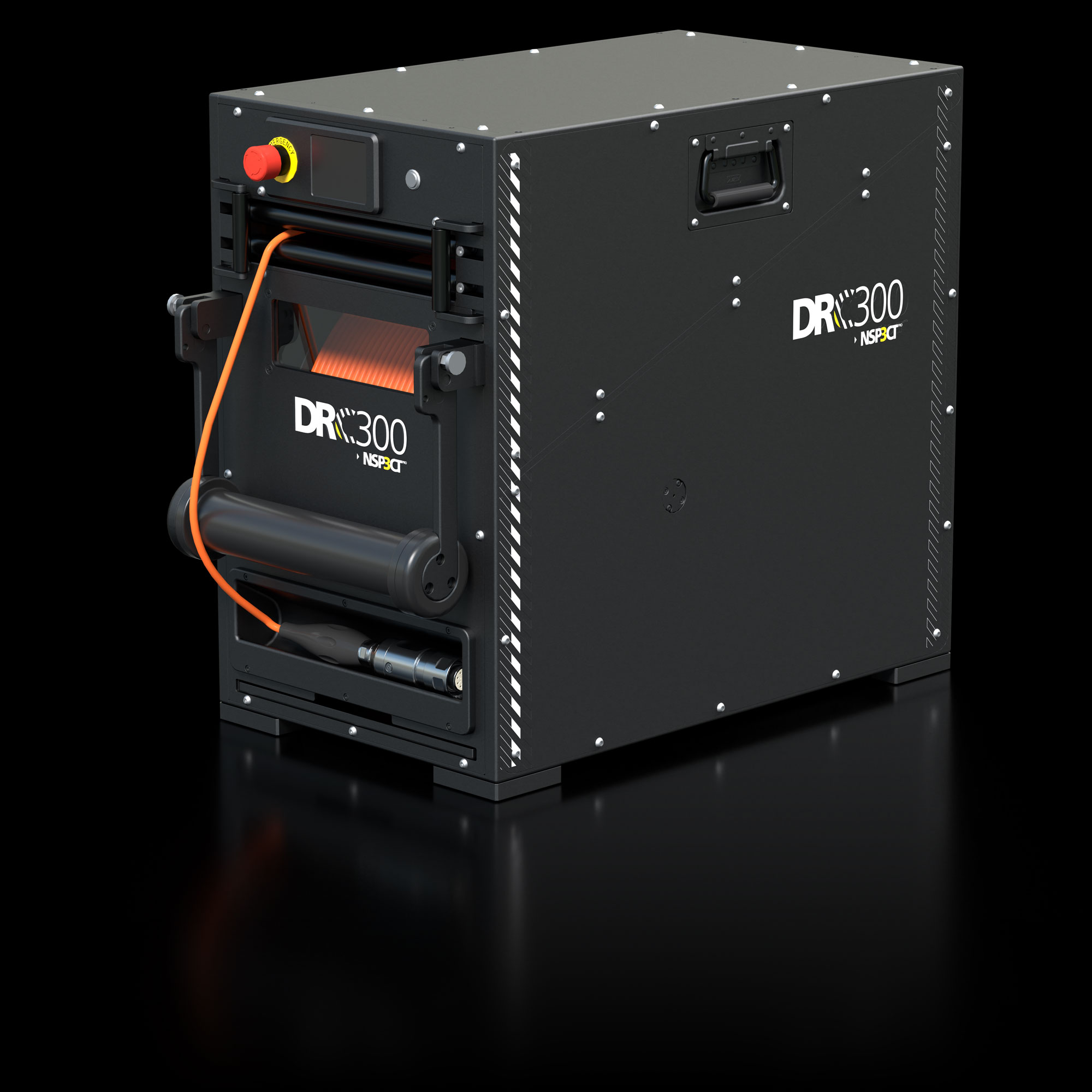

NSP3CT DRC300 Cable Drum (Front/Side View)

FEATURES

FULLY MOTORIZED WINDING AND UNWINDING MECHANISM FOR CONVENIENT CABLE HANDLING.

TOUCH-DISPLAY FOR CONVENIENT CONTROL.

LARGE CABLE CAPACITY: UP TO 300 M CABLE LENGTHS FOR A WIDE RANGE OF INSPECTION SCENARIOS.

PRECISE METER COUNTER: 1 CM ACCURACY FOR EASY TRACKING OF INSERTED CABLE LENGTH.

WEATHER-RESISITANT DESIGN: DUE TO IP54 CERTIFICATION. SUITABLE FOR INDOOR AND OUTDOOR USE.

TEMPERATURE RESISTANT: USABLE IN A WIDE TEMPERATURE RANGE OF -10°C to 60°C.

HIGH DATA RATES: HANDLES 2 SIMULTANEOUS FULL HD DATA STREAMS DUE TO EXTREMELY HIGH DATA RATES VIA COPPER CABLE.

ROBUST CONSTRUCTION: TO RESIST ENVIRONMENTAL INFLUENCES AND MECHANICAL STRESS.

SERVICE FRIENDLY: QUICK AND EASY SERVICE DUE TO COPPER TECHNOLOGY.

ADVANTAGES

MAXIMUM EFFICIENCY: MANUAL LABOR IS MINIMIZED BY FULLY MOTORIZED CABLE DRIVE WHICH EXCELLERATES WORKING CONSIDERABLY.

DURABILITY: HIGH-QUALITY CONSTRUCTION ENSURES A LONG SERVICE LIFE AND RELIABLE PERFORMANCE.

SAFETY: PRECISE CABLE MANAGEMENT REDUCES CABLE DAMAGES AND WEAR.

CONVENIENCE: DESPITE THE HIGH CABLE WEIGTH, THE MOTORIZED OPERATION ALLOWS FOR EASY AND ERGONOMIC USE.

TECH SHEET

DOWNLOAD

OPERATING MANUAL

ONLINE OPERATING MANUAL

PDF OPERATING MANUAL

APPLICABLE CRAWLERS

NSP3CT CRC90 with C50 Camera Head - Front/Side View

THE CRC90 CRAWLER

DN100-DN250

SEE PRODUCT

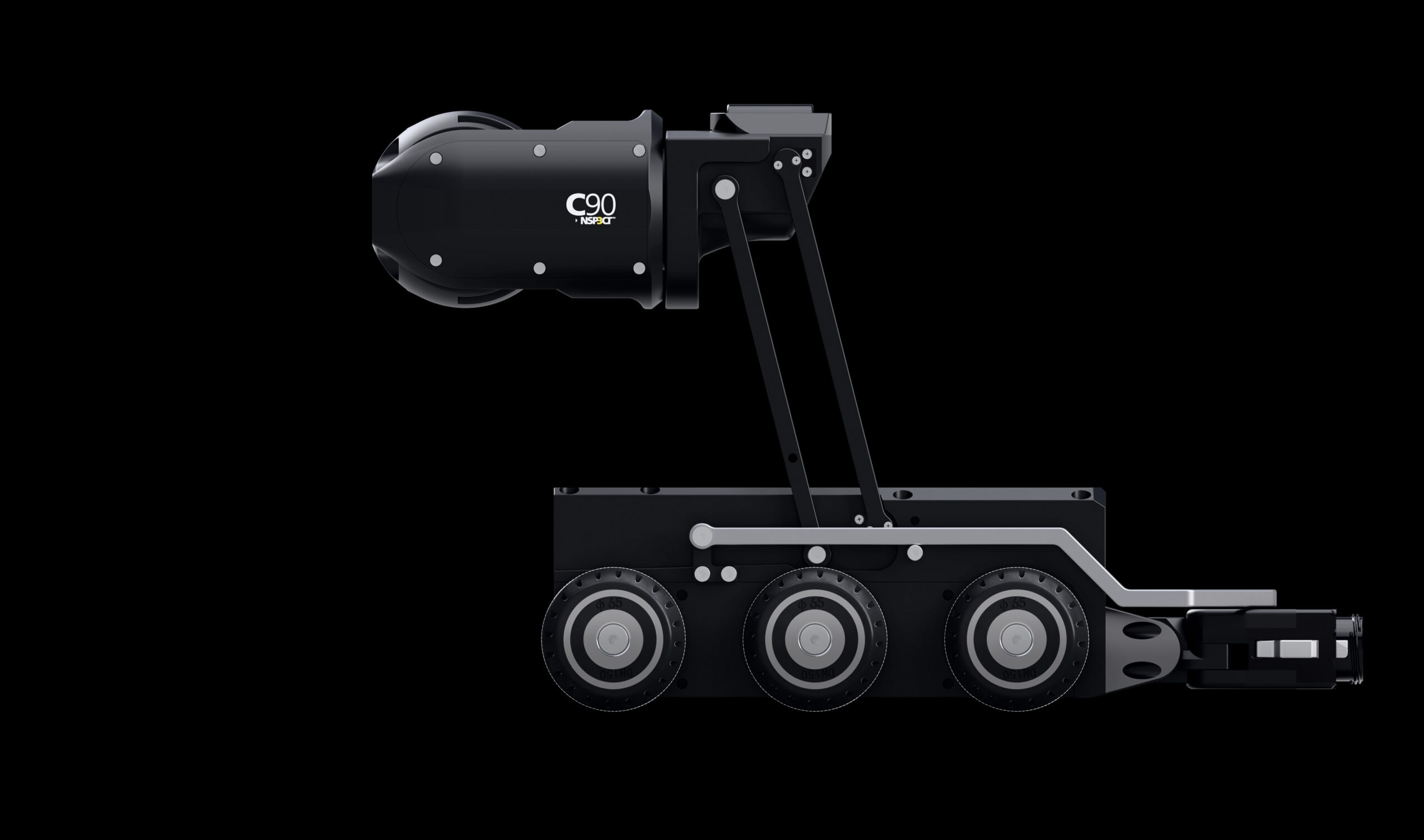

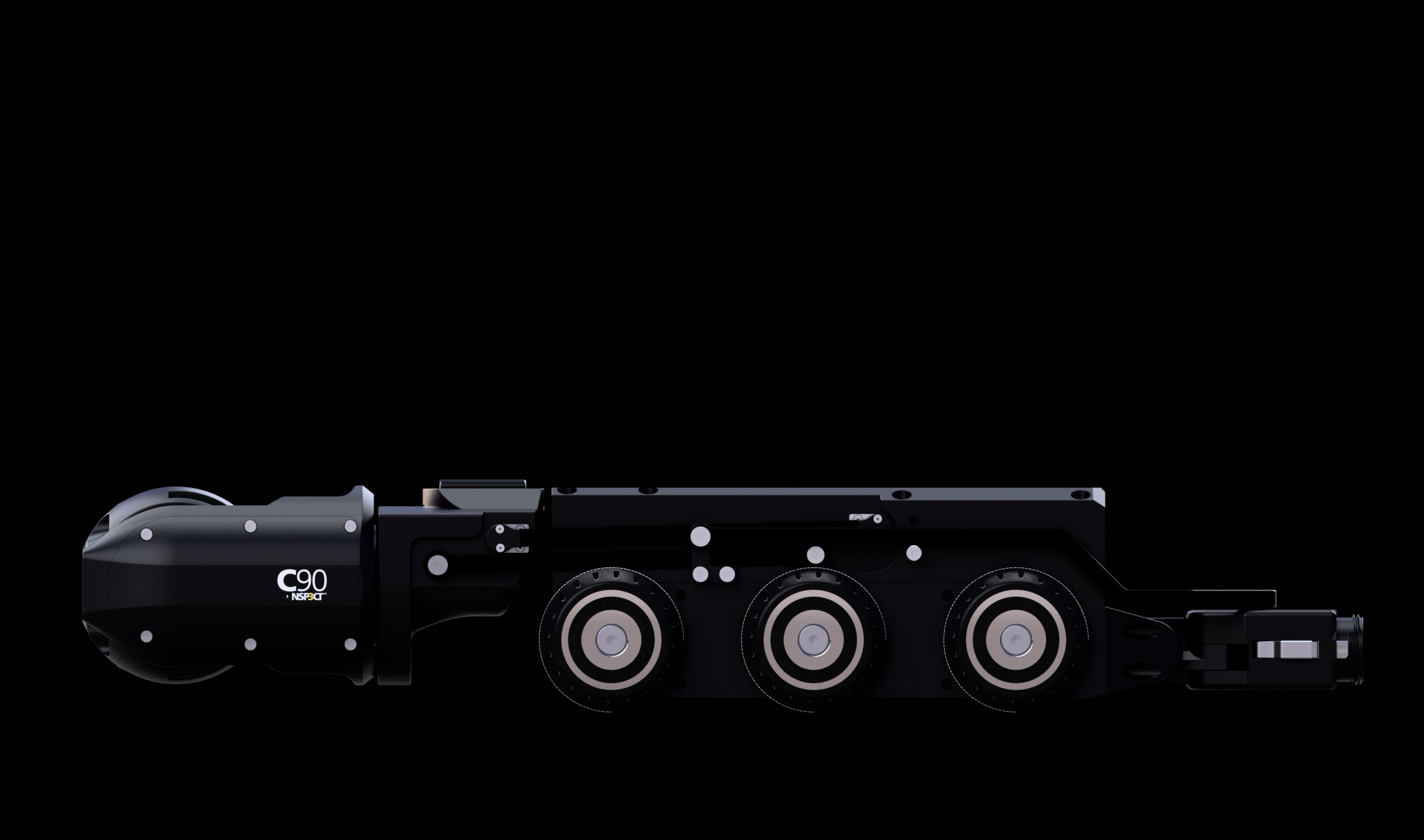

NSP3CT CRC130 Front/Side View (Lifter Up)

THE CRC130 CRAWLER

DN125-DN1000

SEE PRODUCT

FREQUENTLY ASKED QUESTIONS

What section lengths is the DRC300 designed for?

The DRC300 is designed for section lengths up to 300 m and is fully motorised in both directions – ideal for long stretches in urban sewer and drainage networks.

Can the DRC300 be operated without the HMX tablet?

Yes. The integrated touch control display enables direct operation at the drum – without the HMX tablet and independently of a WiFi connection.

How fatigue-free is operating the DRC300 during long deployments?

The fully motorised extraction and retraction handles all cable transport. Operators do not need to pull or guide the cable manually – maximum comfort even on long stretches and multiple consecutive deployments.

Does the DRC300 support external metre counter solutions?

Yes. The DRC300 features additional connections for external metre counter solutions – for full flexibility in documentation and integration into existing reporting systems.

Which crawlers is the DRC300 compatible with?

The DRC300 is compatible with CRC90 and CRC130 and integrates seamlessly into the modular C-SERIES. Control via HMX or tablet over WiFi.
