HIGH TECH
AT LOW COSTS.
PICTURE-IN-PICTURE MODE

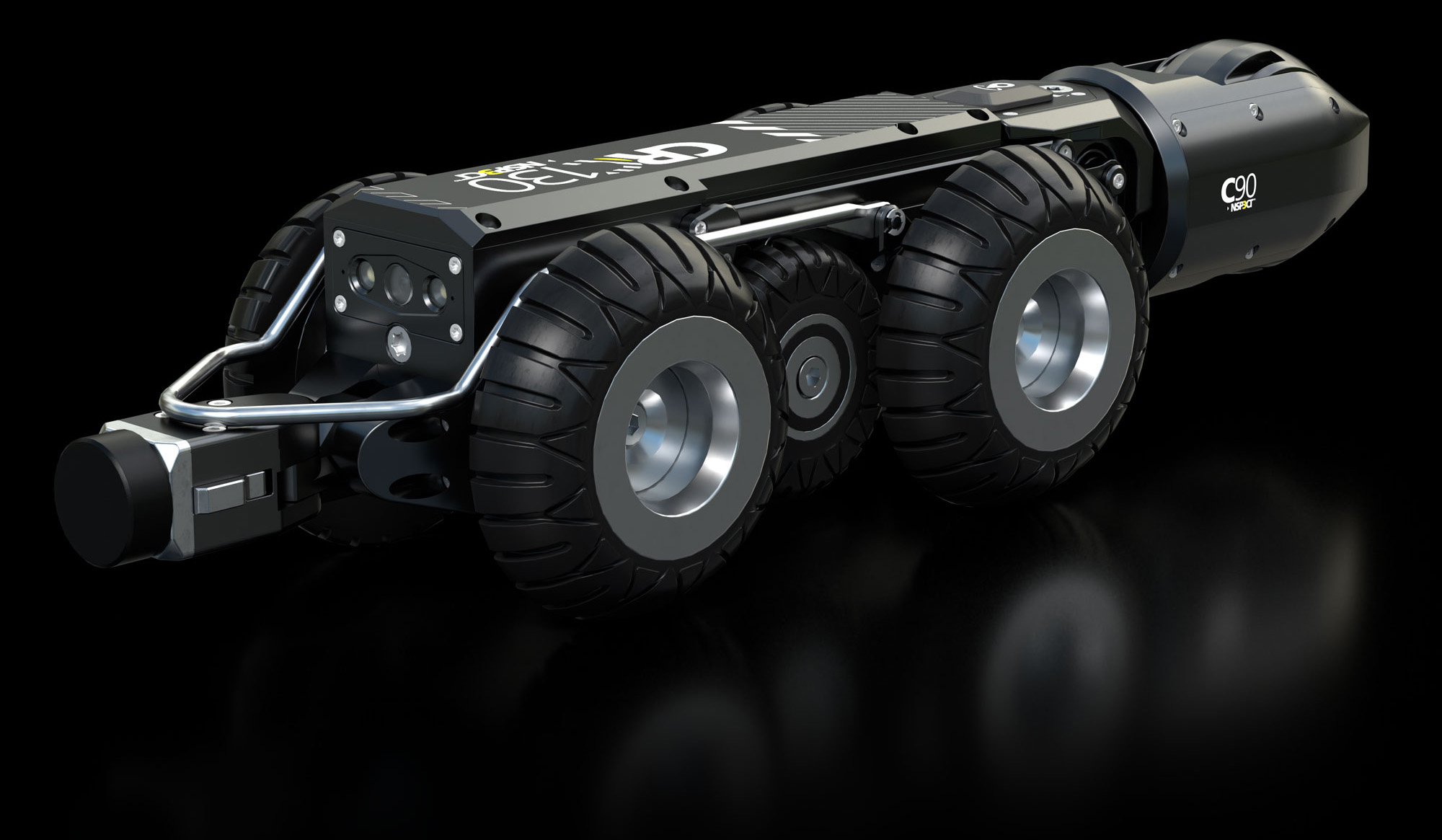

STEERABLE 3×3 DRIVE
WEIGHT: 10,45KG
STAINLESS STEEL BODY
STABILIZATION FUNCTION
INTEGRATED DETECTION AT 512HZ/640HZ/33KHZ
TILT MEASUREMENT
ROLL SENSOR
INTEGRATED TEMPERATURE AND
PRESSURE MEASUREMENT

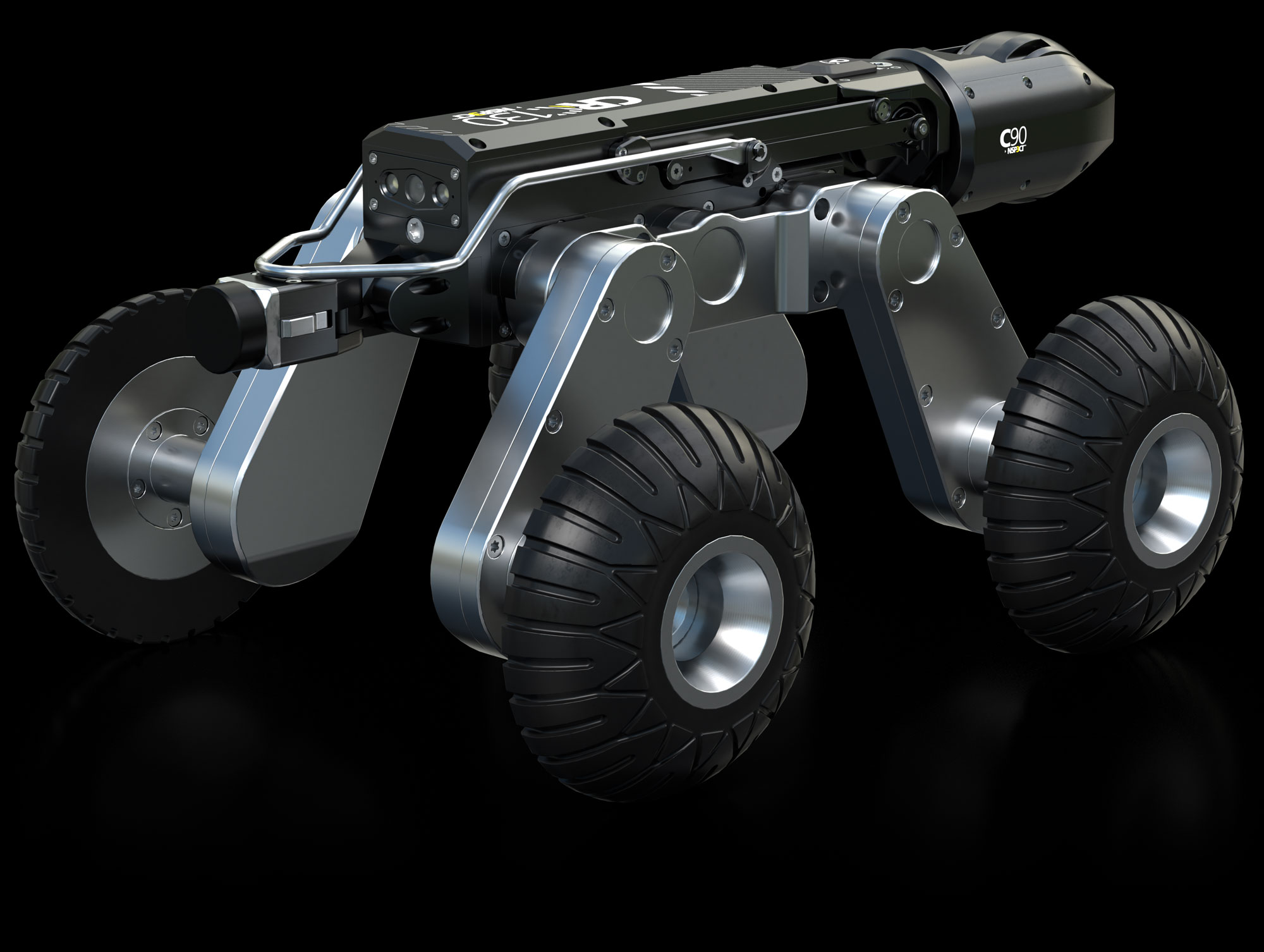

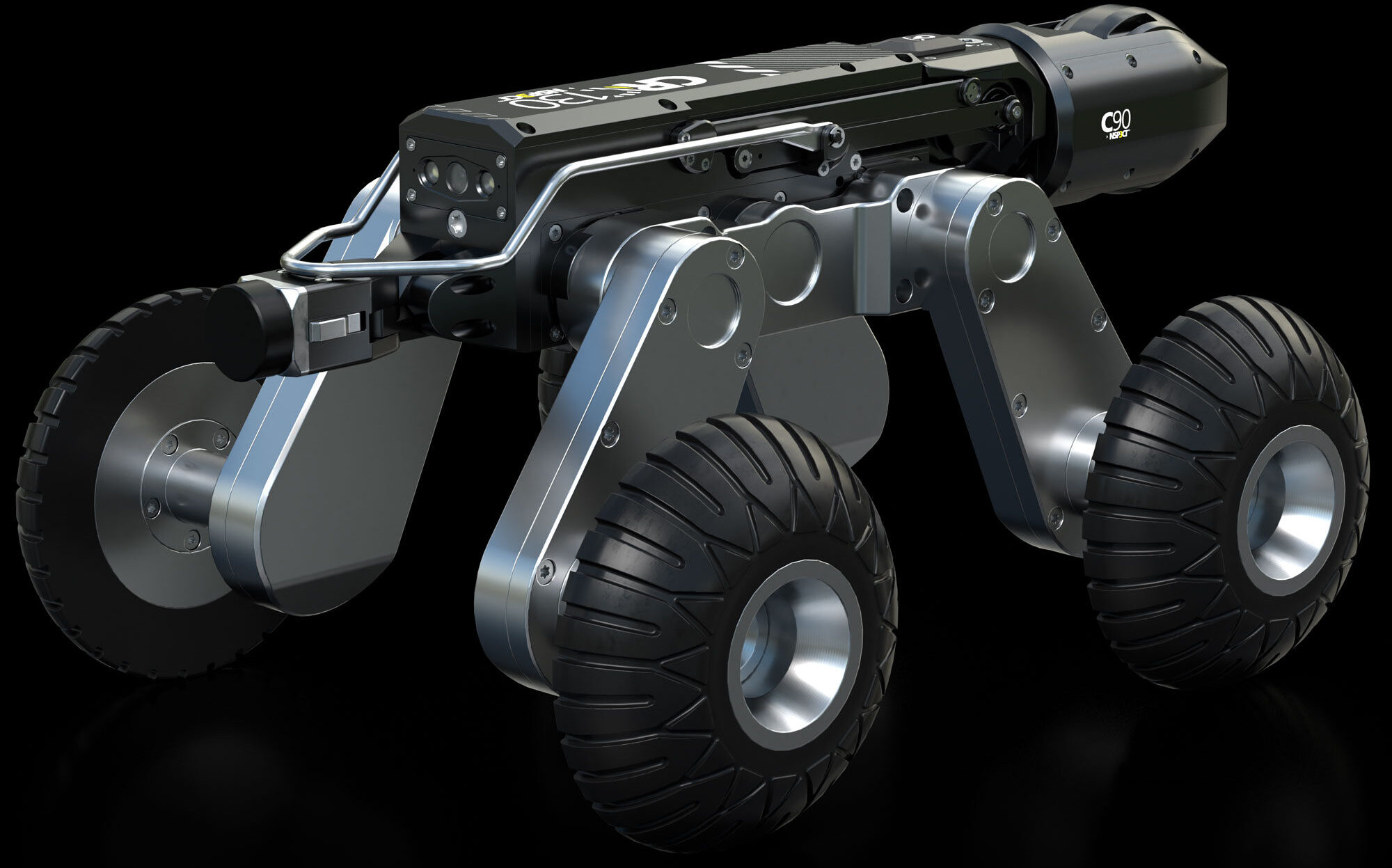

ELECTRICAL LIFTER ADJUSTMENT
FAST WHEEL EXCHANGE SYSTEM
ONLINE USER MANUAL
APPLICATION
DN135 TO DN1000MAX. PRESSURE: 1 BAR
OPERATING TEMPERATURE: 0-40°C
STORAGE TEMPERATURE: -20-70°C

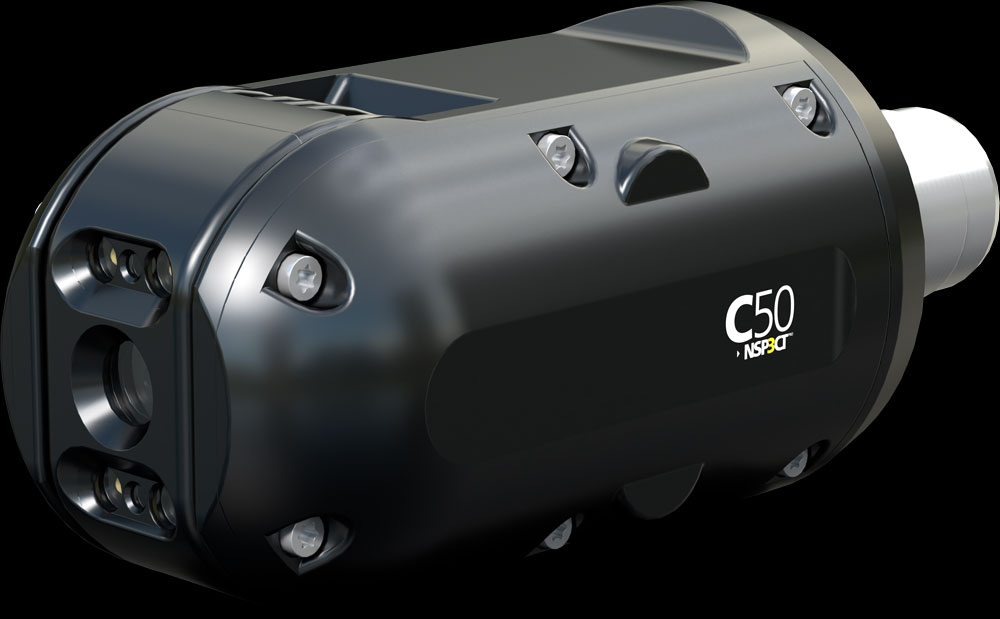

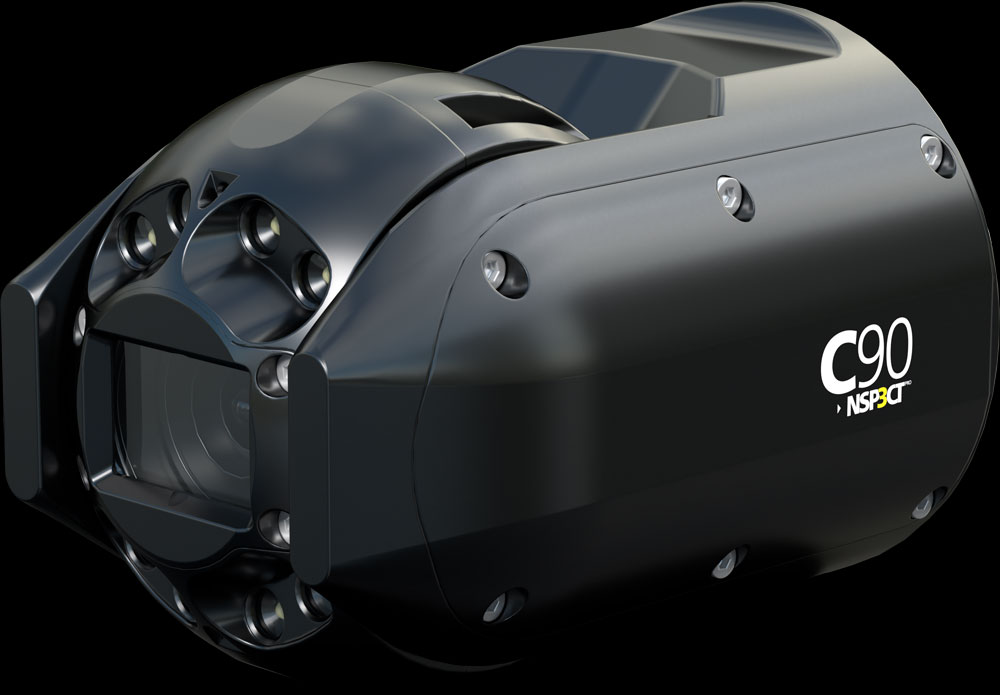

UPRIGHT IMAGE
10X OPTICAL ZOOM
BRIGHT LIGHTING
ENDLESS ROTATION
LASER MEASUREMENT
ONLINE USER MANUAL
APPLICATION
DN135 TO DN1000MAX. PRESSURE: 1 BAR
OPERATING TEMPERATURE: 0-40°C
STORAGE TEMPERATURE: -20-70°C
300 METER CABLE INTEGRATED
HIGH PRECISION MEASUREMENT (ACCURACY OF 1CM)
230V AC
50 HZ MAINS FREQUENCY
FUSE PROVIDED
IP54 (DUST- AND SPLASH-PROOF)
OPERATING TEMPERATURE: 0°C to 40°C
747MM X 350MM X 535 MM
WEIGHT: APPROX. 70 KG INCLUDING CABLE
ONLINE USER MANUAL
FEATURES
FULLY MOTORIZED WINDING AND UNWINDING MECHANISM FOR CONVENIENT CABLE HANDLING.
LARGE CABLE CAPACITY: UP TO 300 M CABLE LENGTHS FOR A WIDE RANGE OF INSPECTION SCENARIOS.
PRECISE METER COUNTER: 1 CM ACCURACY FOR EASY TRACKING OF INSERTED CABLE LENGTH.
WEATHER-RESISITANT DESIGN: DUE TO IP54 CERTIFICATION. SUITABLE FOR INDOOR AND OUTDOOR USE.
TEMPERATURE RESISTANT: USABLE IN A WIDE TEMPERATURE RANGE OF -10°C to 60°C.
HIGH DATA RATES: HANDLES 2 SIMULTANEOUS FULL HD DATA STREAMS DUE TO EXTREMELY HIGH DATA RATES VIA COPPER CABLE.
ROBUST CONSTRUCTION: TO RESIST ENVIRONMENTAL INFLUENCES AND MECHANICAL STRESS.
SERVICE FRIENDLY: QUICK AND EASY SERVICE DUE TO COPPER TECHNOLOGY.
ADVANTAGES
MAXIMUM EFFICIENCY: MANUAL LABOR IS MINIMIZED BY FULLY MOTORIZED CABLE DRIVE WHICH EXCELLERATES WORKING CONSIDERABLY.
DURABILITY: HIGH-QUALITY CONSTRUCTION ENSURES A LONG SERVICE LIFE AND RELIABLE PERFORMANCE.
SAFETY: PRECISE CABLE MANAGEMENT REDUCES CABLE DAMAGES AND WEAR.
CONVENIENCE: DESPITE THE HIGH CABLE WEIGTH, THE MOTORIZED OPERATION ALLOWS FOR EASY AND ERGONOMIC USE.
